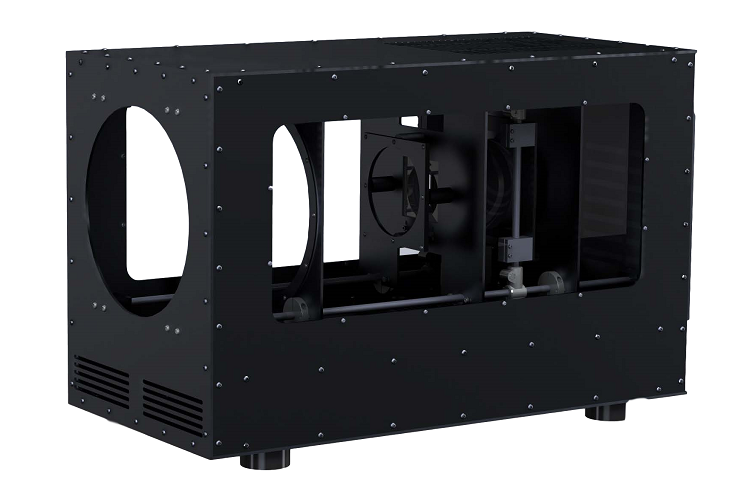

名稱： 高準直太陽光模擬器
型號： SS1.6K-XE-FR / SS3.0K-XE-FR
品牌： 努美科技/Sciencetech
太陽光模擬器特征
? 氙氣短弧燈
? Xenon short arc lamp
? 高準直度
? High collimation
? 專有光學系統
? Proprietary optical system
? 大面積照明
? Large area illumination
? 可選的ABA級
? Optional Class ABA
? 各種太陽模擬器濾光片
? A variety of available filters
? **燈泡對準
? Advanced lamp alignment
? 適用的框架
? Adaptable framework
? 集成電源
? Integrated power supply
? 操作簡單
? Simple operation
Applications
? 光伏測試
? Photovoltaic Testing
? CPV系統
? CPV Systems
? 太陽能熱系統紫外線暴露相關測試
? Solar Thermal Systems UV Exposure Related Testing

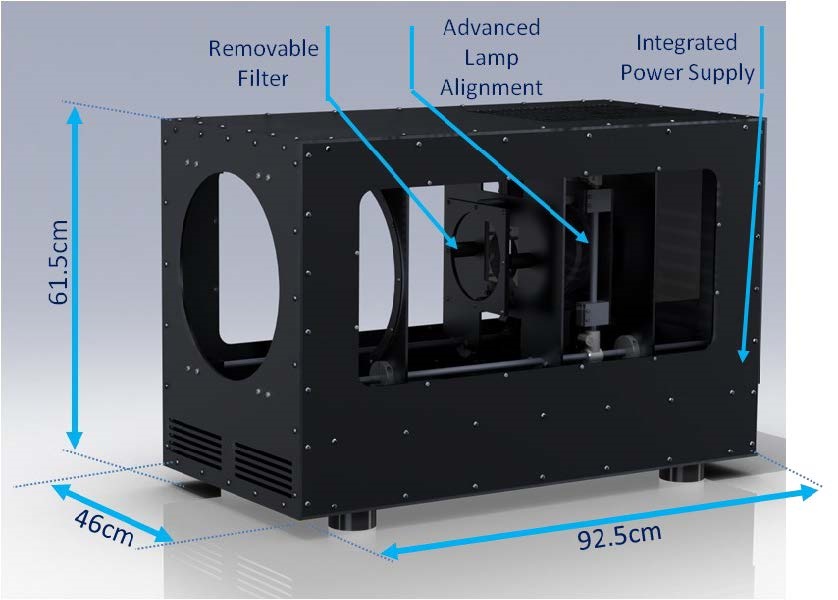

Sciencetech的高度準直的太陽模擬器是為光伏電池測試應用而設計的，這些應用需要對入射輻射進行高度準直。 CPV和太陽熱能應用通常都需要角散度接近太陽（0.5度）的光源。
Sciencetech的高度準直的太陽能模擬器可以提供ABA級，大面積連續照明（分別為9英寸和12英寸）和高準直度（半角0.7度）。 這些太陽能模擬器包括集成電源和**的燈對準工具，使它們易于使用。

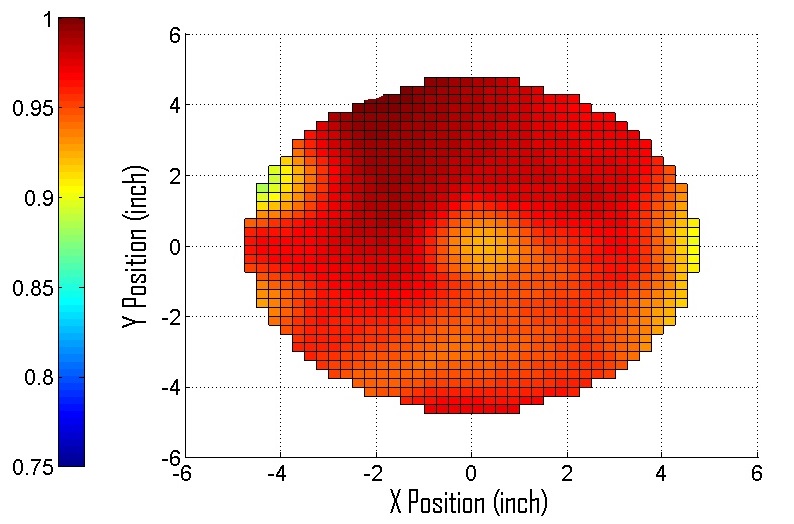

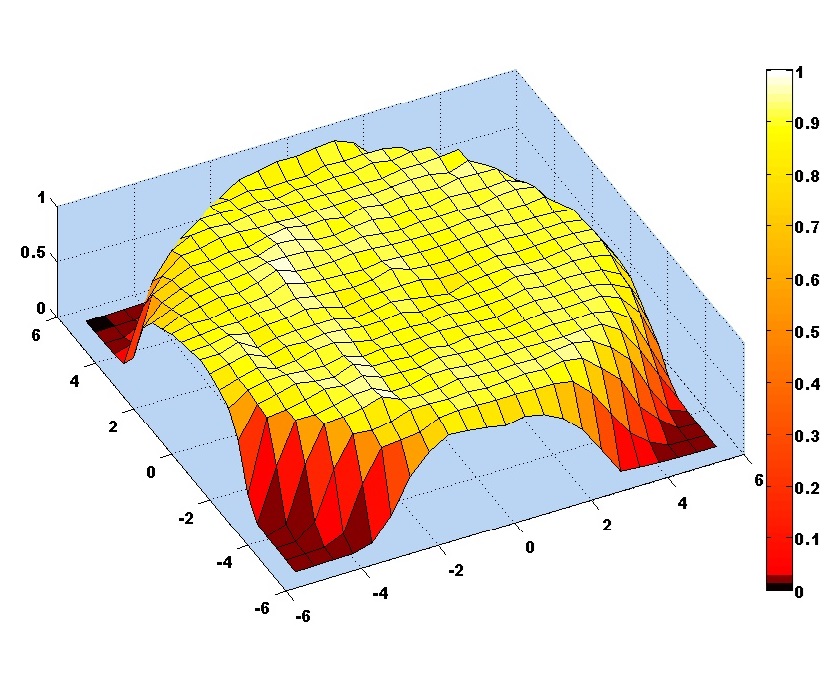

NON-UNIFORMITY*
*Measured NU < + 5% for both the 3.0kW and 1.6kW simu- lators with add-on (B) uniformity option
SPECTRAL MATCH
| Range (nm) | ASTM Standard AM1.5D | Xe-FR Series Result | < + 25% of Standard |
| 400-500 | 16.90% | 15.70% | pass |
| 500-600 | 19.70% | 19.10% | pass |
| 600-700 | 18.50% | 20.80% | pass |
| 700-800 | 15.20% | 15.90% | pass |
| 800-900 | 12.90% | 12.30% | pass |
| 900-1100 | 16.80% | 16.30% | pass |
| SUM | ** | ** | pass |
Generally highly collimated systems utilize ‘direct’ type filters. However other filter types are available
| Specification | SS1.6k-Xe-FR | SS3.0k-Xe-FR |
| Illumination Area1 |
? 22cm (for AM1.5D sun level) ? 20cm (for AM1.5G sun level) ? 15cm (for AM0 sun level) |
? 30cm (for AM1.5D sun level) ? 28cm (for AM1.5G sun level) ? 21cm (for AM0 sun level) |
| Angular pergence 2 | + 0.7 degree | + 0.7 degree |
| Spectral Match3 | Class A | Class A |
| Filters | Various available | Various available |
| Spatial Non-uniformity4 |
+/- 25% base system +/- 5% With uniformity option (B) |
+/-25% base system +/- 5% with uniformity option (B) |
| Temporal Stability | < + 2% | < + 2% |
| Working Distance | 30cm | 20cm |
| Illumination Intensity5 | Up to 200mW/cm^2 without filters | Up to 200mW/cm^2 without filters |
| Orientation | Horizontal | Horizontal |
| Light Source | 1.6kW Xenon Short Arc Lamp | 3.0kW Xenon Short Arc Lamp |
| Unfiltered Spectral range | 250-2500nm | 250-2500nm |
| Lamp voltage, current | 23V / 65 A | 29 V / 100 A |
| Lamp life (hours) | 2000 | 1000 |
| Power supply | Integrated adjustable constant current supply | Integrated adjustable constant current supply |
| Input power / Freq required | 200VAC-240VAC (47-63Hz) | 200VAC-240VAC (47-63Hz) |
| Ripple | < 0.5% | < 0.5% |
| Lamp Cooling | Forced air, interlocked to power supply | Forced air, interlocked to power supply |
| Dimensions (cm) | 92.5 x 46 x 61.5 | 92.5 x 46 x 61.5 |
| Weight (kg) | 50 | 50 |
1) Varies with required illumination intensity.
2) Angular pergence measured is for >70% of the optical power at the target plane
3) With an appropriate filter, purchased separately
LIGHT STABILIZATION (FS-02-N)

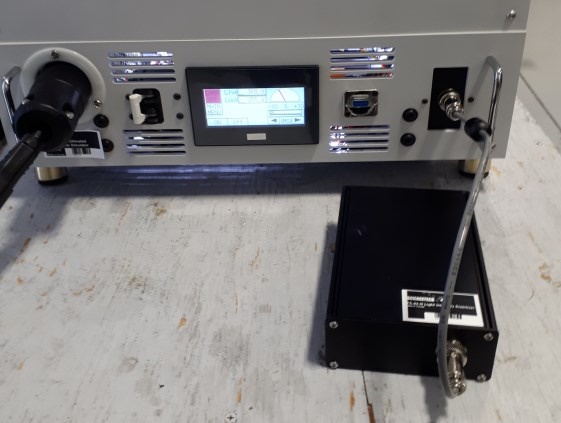

FS-02-N模塊可**穩定光線。
該模塊通過監視模擬器內部的光強度并增加或減少流向燈的電流以維持穩定的光輸出來工作。 FS-02-N包括外部模塊和內部檢測器，應在購買模擬器時訂購
INTERNAL SHUTTER (SSES-XE-FR)

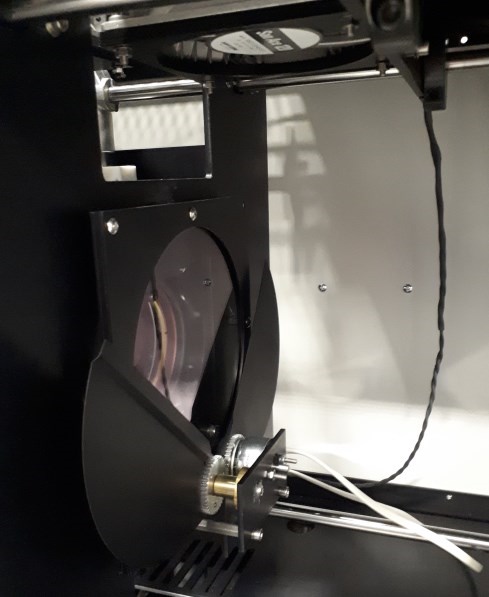

內部快門是為Sciencetech高度準直的太陽能模擬器SS1.6K-XE-FR和SS3.0K-XE-FR設計的。 該百葉窗包括附加的冷卻風扇和模擬器內部的安裝硬件。 購買模擬器時應訂購。
BEAM TURNING ASSEMBLY(CTBT-XE-FR)
模擬器的XE-FR系列產生水平面對的光束。 光束線可以通過系統輸出上的附加大型反射鏡模塊垂直旋轉。
| Available Filters | ||
| Item Number | Description | Used with |
| 160-8030 | AM1.5G Filter, 150x150mm | SS3.0k-Xe-FR |
| 160-8031 | AM1.5D Filter, 150x150mm | SS3.0k-Xe-FR |
| 160-8029 | AM0 Filter 150x150mm | SS3.0k-Xe-FR |
| 647-0160 | AM1.5G Filter, 76.2x76.2mm | SS1.6k-Xe-FR |
| 647-0013 | AM1.5D Filter, 76.2x76.2mm | SS1.6k-Xe-FR |
| 647-0010 | AM0 Filter, 76.2x76.2mm | SS1.6k-Xe-FR |
| Ordering Information | ||
| Item Number | Model | Note |
| 164-9001 | SS1.6KXeFR-B | Class B Uniformity |
| 164-9005 | SS1.6KXeFR | No Uniformity classification |
| 164-9002 | SS3.0KXeFR-B | Class B Uniformity |
| 164-9004 | SS3.0KXeFR | No Uniformity classification |
SPECTRAL MATCH
| Range (nm) | ASTM Standard AM1.5D | Xe-FR Series Result | < + 25% of Standard |
| 400-500 | 16.90% | 15.70% | pass |
| 500-600 | 19.70% | 19.10% | pass |
| 600-700 | 18.50% | 20.80% | pass |
| 700-800 | 15.20% | 15.90% | pass |
| 800-900 | 12.90% | 12.30% | pass |
| 900-1100 | 16.80% | 16.30% | pass |
| SUM | ** | ** | pass |
| Personal Protective Equipment | |
| Item Number | Description |
| 720-0159 | (UV-Glasses-Drk) Dark safety glasses |
| LS0001 | Powder free gloves, Large |
Generally highly collimated systems utilize ‘direct’ type filters. However other filter types are available
更新時間：2024-10-30
